 HOME > 제품소개 > 배관자재품 > 호스커넥터 |
|
|
 |
|
 |
 |
 |
 |
 |
| |

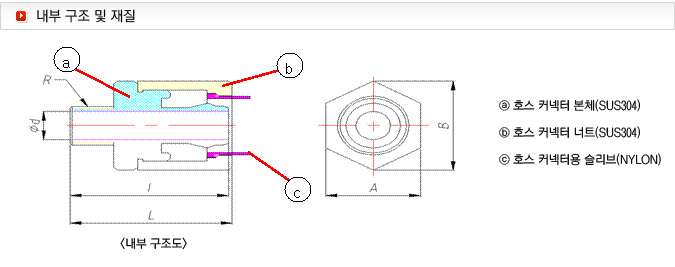

| 형 식 |
Ｒ |
Ｌ |
ｌ |
φd |
적용호스
내경X외경 |
A |
B |
| HMC12x18-04R |
1/4" |
42.5 |
43.5 |
8 |
φ12×18 |
26 |
30 |
| HMC12x18-06R |
3/8" |
43.5 |
44.5 |
10 |
φ12×18 |
26 |
30 |
| HMC12x18-08R |
1/2" |
45.5 |
46.5 |
10 |
φ12×18 |
26 |
30 |
| HMC15x22-04R |
1/4" |
45 |
46 |
8 |
φ15×22 |
30 |
34.6 |
| HMC15x22-06R |
3/8" |
47 |
48 |
10 |
φ15×22 |
30 |
34.6 |
| HMC15x22-08R |
1/2" |
49 |
50 |
14 |
φ15×22 |
30 |
34.6 |
| HMC15x22-12R |
3/4" |
51 |
52 |
14 |
φ15×22 |
30 |
34.6 |
| HMC19x26-08R |
1/2" |
55.5 |
56.5 |
14 |
φ19×26 |
35 |
40.5 |
| HMC19x26-12R |
3/4" |
59.5 |
60.5 |
17.4 |
φ19×26 |
35 |
40.5 |
| HMC19x26-16R |
1" |
60.5 |
61.5 |
17.4 |
φ19×26 |
35 |
40.5 |
| HMC25x33-12R |
3/4" |
64 |
65 |
18 |
φ25×33 |
42 |
48.5 |
| HMC25x33-16R |
1" |
65 |
66 |
24 |
φ25×33 |
42 |
48.5 |
| HMC32x41-20R |
1 1/4" |
74 |
75 |
28 |
φ32×41 |
54 |
62.4 |
| HMC32x41-24R |
1 1/2" |
75.5 |
76.5 |
28 |
φ32×41 |
54 |
62.4 |
|
| |
 |
 |
| |
|
 |
|
|
